Λεπτομέρειες:
|
| Ονομα: | Άλλη μπαταρία | Ονομαστική τάση: | 38.4V |
|---|---|---|---|
| Ονομαστική χωρητικότητα: | 50Ah-150Ah | Διάσταση: | 385*338*245 χλστ |
| Εφαρμογή: | Καροτσάκια γκολφ | Ονομαστική Ενέργεια: | 2560 Wh- 7680 Wh |

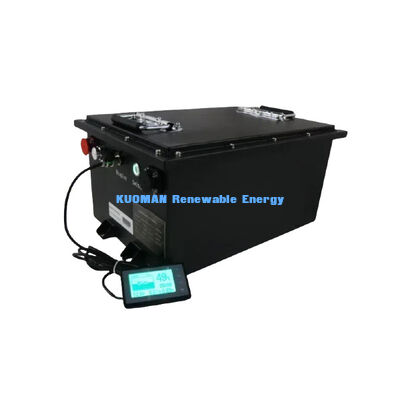

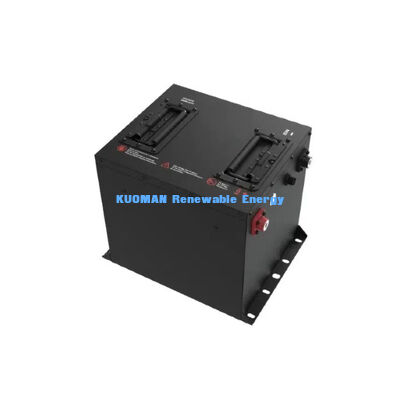

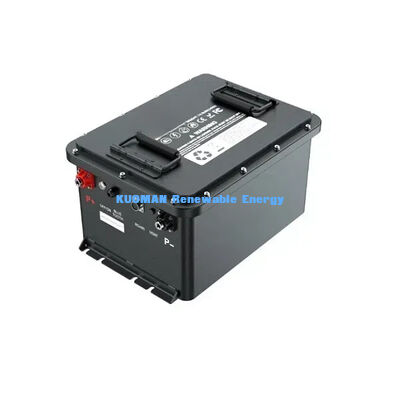

KM 48V -50-150Ah Customized Golf Cart LiFePO4 Battery 8000 Cycles
KM Battery Specification:
Batteries are built with top level intelligent BMS which protects it from short-circult, over charging and discharging, over current and other dangerous situations; you have no worry about its safety and working life; 1
2V lithium batteries are built with high energy density LiFePO4 cells, of prismatic which not only saves the energy space but also weight, at least 1/3 lighter than traditional lead acid batteries; KM Energy provides the longest 10 years warranty in order to support customers in overall services.
| Data Specification | |
| Product Model | KM-48V50G |
| Nominal Voltage | 58.4V |
| Nominal Capacity | 50Ah |
| Nominal Energy | 2560Wh |
| Cell Type | LiFePO4 Cell |
| Charging Cut-off Voltage | 58.4V |
| Standard Charging Current | 10A |
| Max Charging Current | 50A |
| Charging Temperature | 0℃～55℃ |
| Discharging Cut-off Voltage | 40V |
| Discharging Current | 50A |
| Max Continous Discharging Current | 150A |
| Peak Discharging Current(3S) | 200A |
| Discharging Temperature | -20℃~60℃ |
| BMS Protection | Overcharging/over-discharging, Over-voltage/Over-current, Short Circuit/etc |
| Case Material | metal/custom material |
| Terminal | fast plug-in |
| Battery Size | 472*334*243mm |
| Net Weight | 35kg |
| Communication | CAN/RS485/RS232/Bluetooth(optional) |
| Certificate | UN38.3/MSDS/Sea/Air Transport Report/CE/IEC |
| Shipping Method | by Sea/Air/Railway |
| Delivery Time | Qty within 100pcs: 5-12days |
| Note | Still more models of 10Ah, 150Ah,200Ah |
