Λεπτομέρειες:
|
| Ονομα: | Υψηλής απόδοσης ευέλικτο ηλιακό πάνελ | Διαστάσεις πίνακα: | 115*98,5 εκ |
|---|---|---|---|
| Μάρκα: | KUOMAN | Χρόνος εργασίας (H): | 24 ώρες |
| Υλικό: | πολυ πυρίτιο | Χρώμα: | Μαύρος |
| Μέγ. Εξουσία: | 200W | Ηλιακό κύτταρο: | Μονοκρυσταλλικός |
| Τάση μέγιστης: | 18V | Εγκατάσταση: | Εύκολη απολέπιση και προσκόλληση |
| Ανοχή παραγωγής: | ± 3% | Εκτύπωση λογότυπου: | Προσαρμογή |
| Ανώτατη τάση συστημάτων: | 1000/600 V | Μέγιστη ισχύς: | 100W |
| Αξεσουάρ: | Ελεγκτής φόρτισης 10Α, καλώδιο 10 ποδιών με κλιπ αλιγάτορα | ρεύμα σε Pmax: | 8.34Α (ΙΜΠ) |
| Συνδετήρας: | Συμβατός σύνδεσμος | Μέγιστη τάση ισχύος: | 18V |

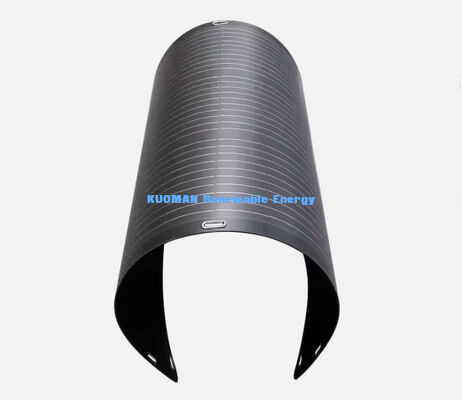

High-Efficiency Flexible Solar Panel ETFE Thin Film 100W 210W for Outdoor Adventures and Mountain Climbing
Applicant: Home solar energy storage, RV travel, outdoor travel, outdoor adventure, mountain climbing, picnic and other entertainment venues
Advantage of 200W flexible solar panel :
1)Ultra thin and light;
2)IP68 waterproof level;
3)With long time life span;
4)Full power output;
5)Multifuntion port for more different devices,like 24V battery,power station,power generator,power bank;
6)Can be bent to 360°;
7)Don't worry the solar cell with damage to lead to short current and fire risk--safe and stable;
8)With transparent material with bifacial function ;
9)with CE,ROHS,FCC certification;
| Power |
Open-circuit (Voc/V) |
Short-circuit
(Isc/A) |
Design Voltage (Vmp/V) |
Max. Power Current (Imp/A) |
Solar Panel Efficiency(%) |
Product Architecture |
Size (mm) |
| 100W | 21.9V | 5.75A | 19.2V | 5.5A | 24.20% | 7/9 layer | 918*580*2.5 |
| 120W | 22.6V | 6.93A | 19.2V | 6.63A | 24.20% | 7/9 layer | 1084*580*2.5 |
| 150W | 21.21V | 9.24A | 18V | 8.84A | 24.20% | 7/9 layer | 1020*764*2.5 |
| 180W | 21.21V | 11.1A | 18V | 10.61A | 24.20% | 7/9 layer | 1203*764*2.5 |
| 200W | 23.1V | 11.09A | 19.8V | 10.6A | 24.20% | 7/9 layer | 1316*764*2.5 |
| 250W | 22.5V | 13.89A | 19.2V | 13.28A | 24.20% | 7/9 layer | 1279*948*2.5 |
| 300W | 44.9V | 8.64A | 38.5V | 8.26A | 24.20% | 7/9 layer | 1618*948*2.5 |
| 350W | 44.54V | 9.87A | 37.9V | 9.44A | 24.20% | 7/9 layer | 1799*948*2.5 |
| 400W | 44.54V | 11.62A | 37.8V | 11.11A | 24.20% | 7/9 layer | 1771*1132*2.5 |
| 450W | 42.42V | 13.84A | 36.12V | 13.23A | 24.20% | 7/9 layer | 1977*1132*2.5 |
| 500W | 42.42V | 15.26A | 36.12V | 14.59A | 24.20% | 7/9 layer | 2164*1132*2.5 |
Product Feature:

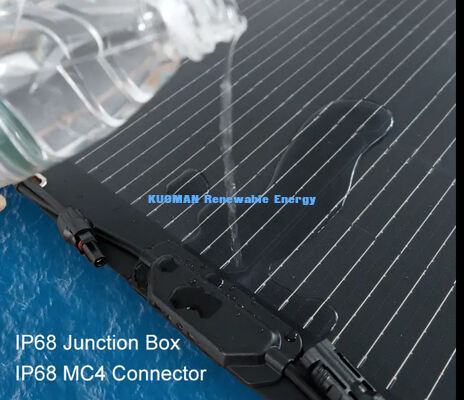

1.Fully waterproof conjunction box with silicon glue,specially with diode built in to
avoid conversed connection;
2. Eyelet with Larger size ,easy to fix ;
3. 10PCS of eyelets left for multiple location to fix;
4.High efficiency solar cell up to 23% ;
5.Universal and robust MC4 connector .
Flexible Solar Panel Specification:
| Brand Name | KUOMAN SOLAR |
| Model Number | KM FL210W |
| Material | FFC compound material+EVA+Mono solar cell+EVA+Carbon Fiber |
| Color | White/Black |
| Cell size | 182mmx182mm |
| Panel Dimensions | 115*98.5CM |
| Panel Efficiency | >=23% |
| OEM/ODM | Availble |
| Warranty | 1year |
FAQ
1.Can you supply OEM &ODM service ?
A:Yes, only MOQ regards.
2.What's kind of certificates and patent your products have acquired ?
A:1) Full of CE,ROHS,FCC,PSE,UL.2)Utility model of China and Appearance Patent of Europe.
3.Can I test the sample?
A:Yes,we can supply one sample to test with charge,and refunded of product itself on mass order.
