Λεπτομέρειες:
|
| Panel Dimensions: | 115*98.5CM | Μάρκα: | KUOMAN |
|---|---|---|---|
| Work time (h): | 24 Hours | Material: | poly silicon |
| Color: | Black | Max. power: | 200W |
| Solar Cell: | Monocrystalline | Peak Voltage: | 18V |
| Installation: | Easy peel-and-stick adhesive backing | Output Tolerance: | ± 3% |
| Logo Print: | customization | Max System Voltage: | 1000/600 V |
| Maximum Power: | 100W | Accessories: | 10A charge controller, 10ft cable with alligator clips |
| Current At Pmax: | 8.34A(IMP) | Connector: | Compatible Connector |
| Maximum Power Voltage: | 18V | Name: | Flexible Solar Panel |
| Επισημαίνω: | 100W Bendable Solar Panel,Rugged Solar Panel 100W,Overlanding ETFE Solar Panel |
||

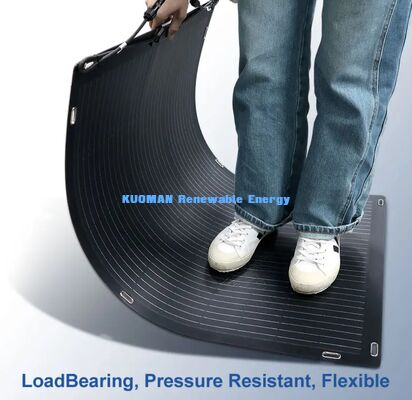

Rugged 100W Bendable Solar Panel Mountaineering & Overlanding ETFE Coated
Product Overview
Redefining off-grid mobility, our ETFE Flexible Solar Panel Series delivers high-efficiency power (100W–500W) in an ultra-slim, bendable form factor. Engineered for life on the move, these panels are the preferred energy solution for RV travelers, marine vessels, outdoor gear manufacturers, and furniture-integrated solar applications across the Americas and Africa. With industry-leading 24.2% cell efficiency and a durable 7/9-layer composite construction, they convert sunlight into usable power even in tight spaces and curved surfaces where rigid panels cannot go.
Technical Specifications Table
Material Construction:
Surface Layer: Matte ETFE (Ethylene Tetrafluoroethylene) — anti-reflective, scratch-resistant, weatherproof
Encapsulation: High-transparency EVA (Ethylene Vinyl Acetate)
Core Layer: IBC solar cells — maximized light absorption, no visible grid lines
Backing Layer: Carbon fiber composite — lightweight, rigid, durable
Bottom Layer: Fabric finish with EVA coating — non-slip, soft-touch, water-resistant
Color Options:
Matte Black
Matte Black with Orange Accents
Electrical Characteristics (STC):
Open Circuit Voltage (Voc): 21V (±3%)
Maximum Power Voltage (Vmp): 17.1V (±3%)
Short Circuit Current (Isc): 7.33A (±5%)
Maximum Power Current (Imp): 6.7A (±5%)
Mechanical Specifications:
Expanded Dimensions: 111 × 61 × 0.3 cm (43.7 × 24 × 0.12 in)
Folded Dimensions: 61 × 59.7 × 3.1 cm (24 × 23.5 × 1.22 in)
Net Weight: 2.8 kg (6.17 lbs)
Frequently Asked Questions (FAQ)
Q: Can this panel directly charge a laptop without a power station?
A: Yes, when paired with our optional DC-DC voltage regulator cable. The 18V Vmp output is optimized for 12-16V laptop charging profiles. Always verify your laptop input specification; we offer adapter tip kits covering Dell, HP, Lenovo, Apple MagSafe, and USB-C PD configurations.
Q: What makes shingled cell technology better than standard flexible panels?
A: Conventional flex panels lose approximately 3-5% of active area to silver busbars and cell gaps. Shingled imbrication overlaps cells like roof tiles, eliminating dead zones. This delivers higher wattage per square meter and creates a seamless visual appearance preferred by premium outdoor brands.
Q: Is the white backsheet purely aesthetic or functional?
A: Both. White ETFE/polyester composite reduces operating temperature by up to 8°C in direct sun compared to black backsheets. Cooler cells maintain higher voltage output in desert and equatorial environments. Black variant prioritizes visual integration with dark gear and architectural surfaces.
