Λεπτομέρειες:
|
| Μέγιστο ρεύμα εκφόρτισης: | 100Α | Μέγεθος μπαταρίας: | 442*500*140 χλστ |
|---|---|---|---|
| Ονομαστική χωρητικότητα: | 100 Ah | Ονομαστική τάση: | 51,2 V |
| Ονομαστική Ενέργεια: | 5120 wh | Μέγιστο ρεύμα φόρτισης: | 100Α |
| Τύπος κυττάρου: | lifepo4 κύτταρο | Τάση αποκοπής φόρτισης: | 56,2 V |
| Πρότυπο ρεύμα φόρτισης: | 50Α | Απαλλαγή της κομμένης τάσης: | 45.6V |
| Πιο υψηλό ρεύμα εκφόρτισης: | 200Α | Ανακοίνωση: | CAN/RS485/RS232/Bluetooth (προαιρετικό) |
| Επισημαίνω: | Ultra-Thin 14cm wall mount LiFePO4 battery,5.12kWh home battery storage with warranty,Grade A CATL EVE cells battery |
||

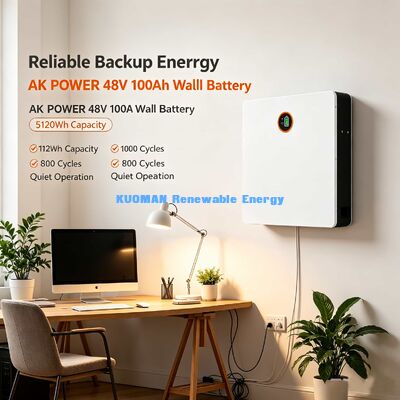

Our slim wall-mounted lithium iron phosphate battery is a premium off-grid & grid-tied solar storage solution for residential backup power, solar PV systems, and emergency power supply. Built with Grade A EVE/CATL/BYD/Gotion LiFePO4 cells, it delivers 8000 deep cycle lifespans and a 10-year full manufacturer warranty, making it the most reliable home energy storage battery on the market.
| Product Model | KM48V100P2 |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5120Wh |
| Cell Type | LiFePO4 Cell |
| Charging Cut-off Voltage | 56.2V |
| Max Charging Current | 100A |
| Standard Charging Current | 50A |
| Discharging Cut-off Voltage | 45.6V |
| Discharging Current | 50A |
| Max Continuous Discharging Current | 100A |
| Peak Discharging Current (3S) | 200A |
| BMS Protection | Overcharging/over-discharging, Over-voltage/Over-current, Short Circuit, etc. |
| Battery Size | 442×500×140mm |
| Communication | CAN/RS485/RS232/Bluetooth (optional) |
| Certificate | UN38.3/MSDS/Sea/Air Transport Report/CE/IEC |
A: The battery supports 8000 deep full charge cycles, equivalent to over 20 years of daily household use under regular charging-discharging habits, far exceeding traditional lead-acid gel batteries. We also provide a full 10-year manufacturer warranty.
